Skill Level: Novice

Objectives

• Install vmWare
• Create a Linux Virtual Machine (Ubuntu Server)
• Create a Kali Virtual Machine
• Identify the IP address of each
• Ping from machine to machine on a bridged virtual network

Introduction

This short guide is how to build a home security training lab.

The Hypervisor

I prefer vmWare . Download it and install it. There is Workstation for Windows and Fusion for Mac.

Building a VM

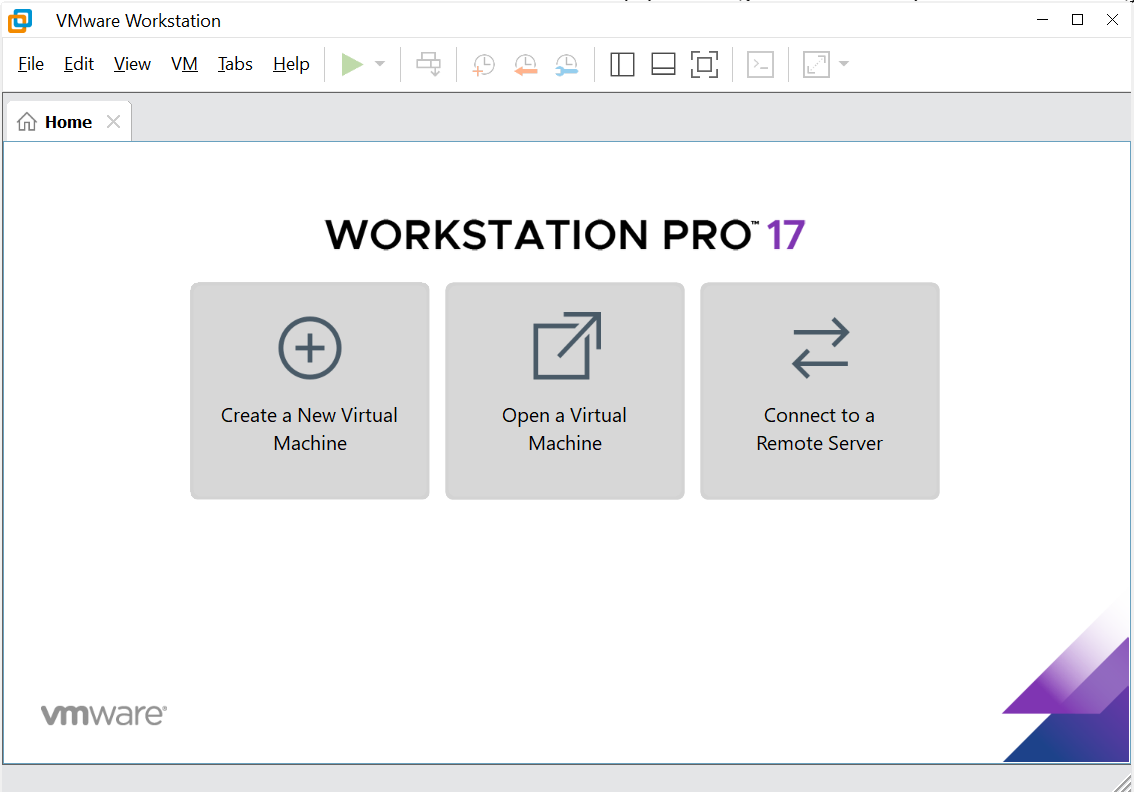

1. Open vmware and click ‘Create a New Virtual Machine’

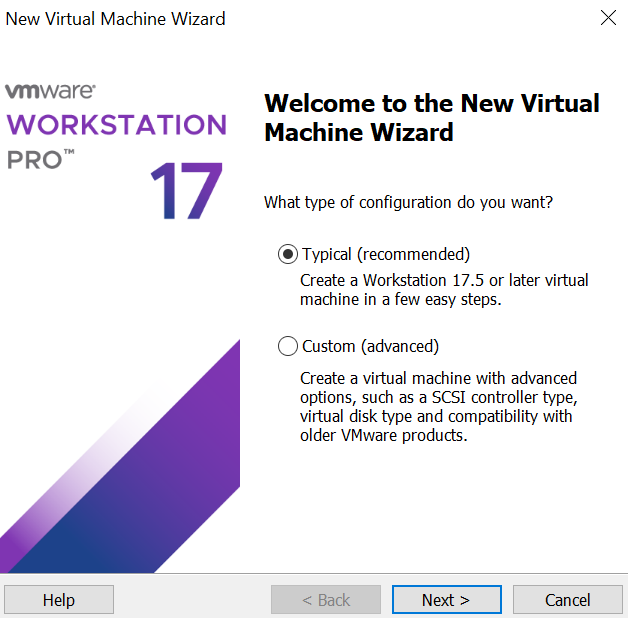

1. Select ‘Typical’ and click Next

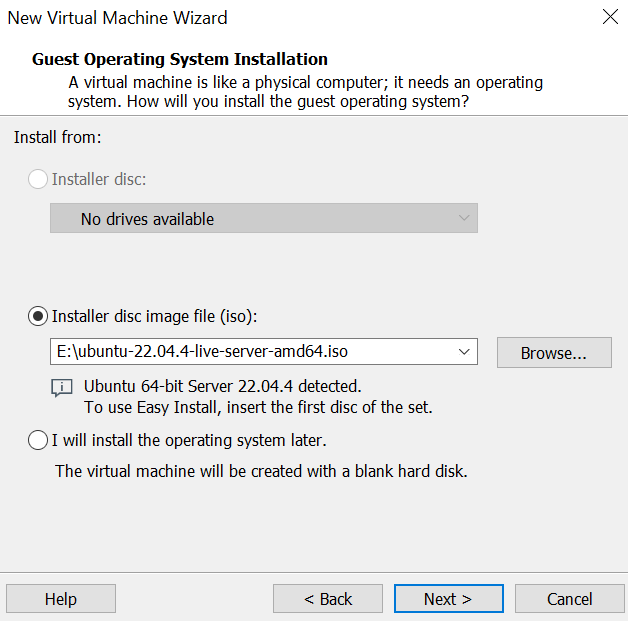

2. Choose the .iso file you downloaded. By default, most Windows browsers (Chrome, Edge, Firefox, etc.) will save it in a folder marked Downloads (we’ll get into file management much later).

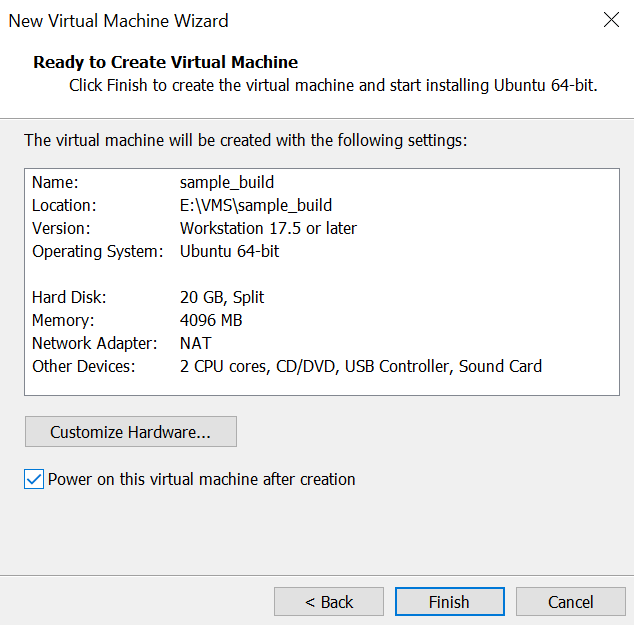

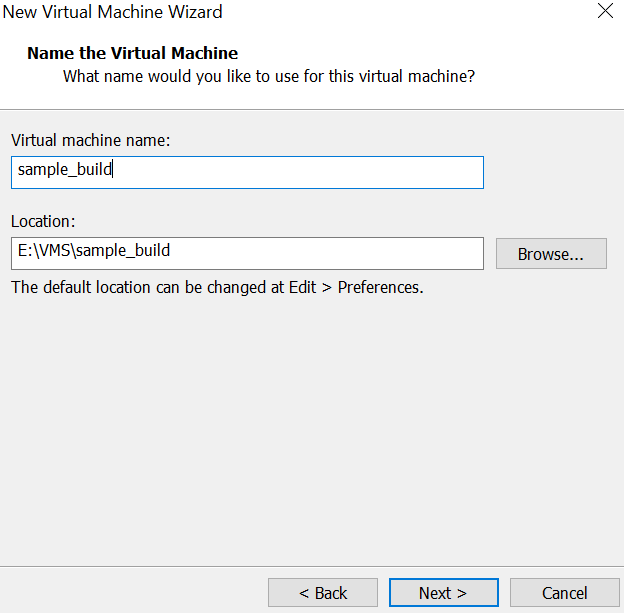

3. Give the VM a name that is meaningful. Hypervisors save virtual machines like files. They reside in a directory and can be easily copied and moved. Notice where mine is being created. It’s in the directory \VMS\Sample_build on the E: drive

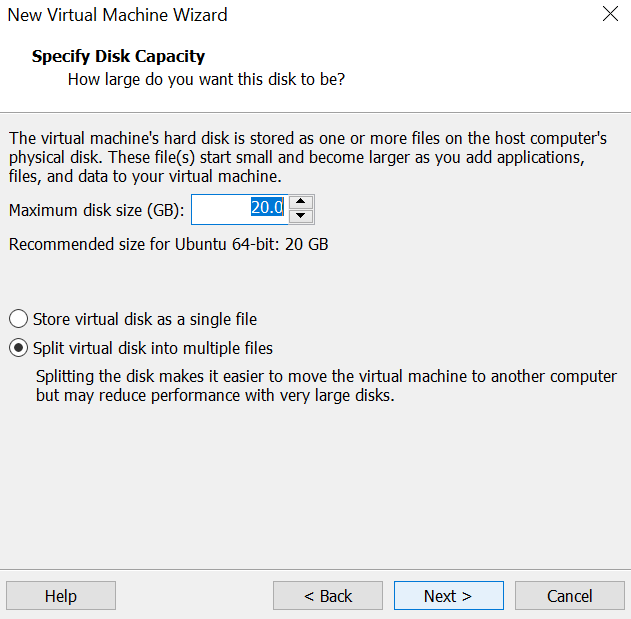

4. Choose the default disk size of 20GB

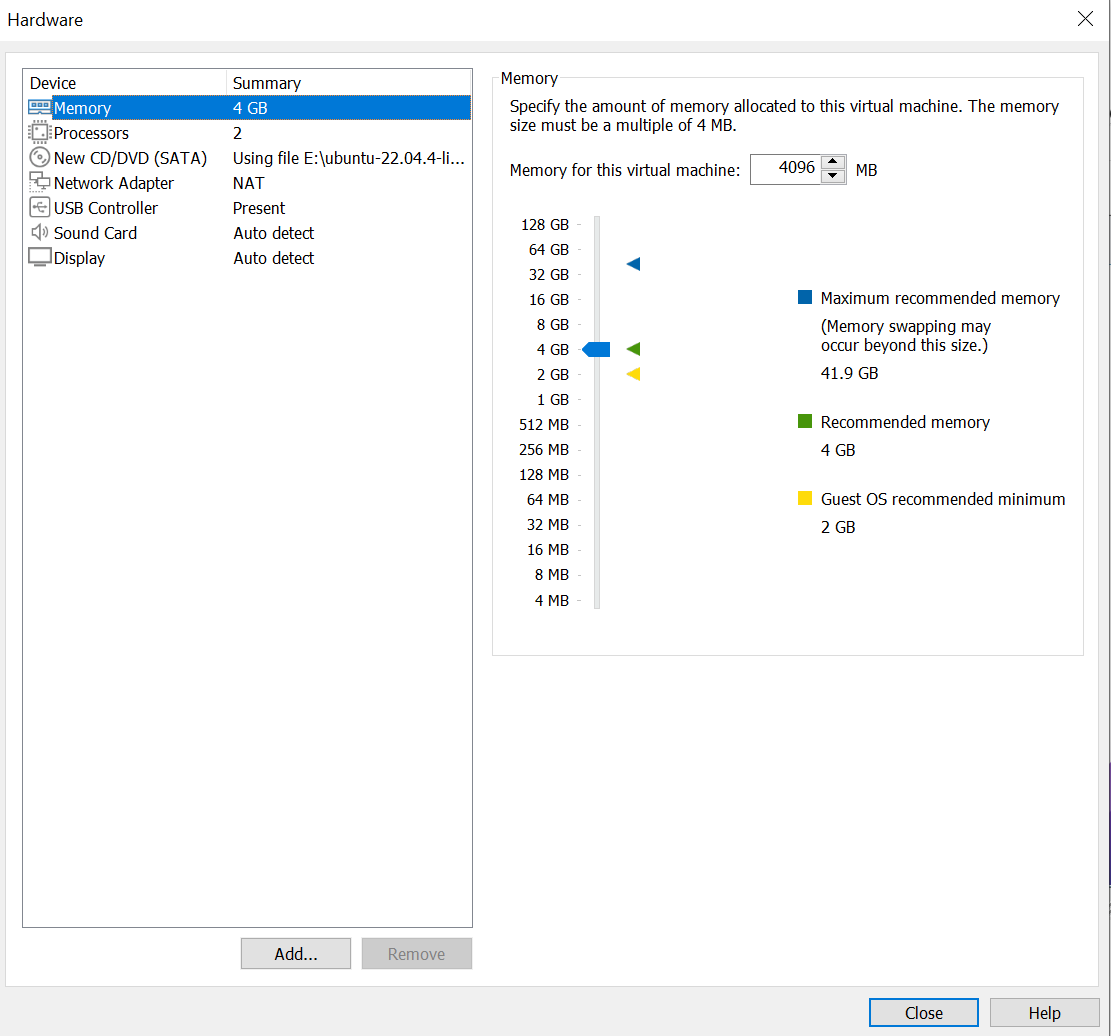

5. Click the Customize Hardware… button

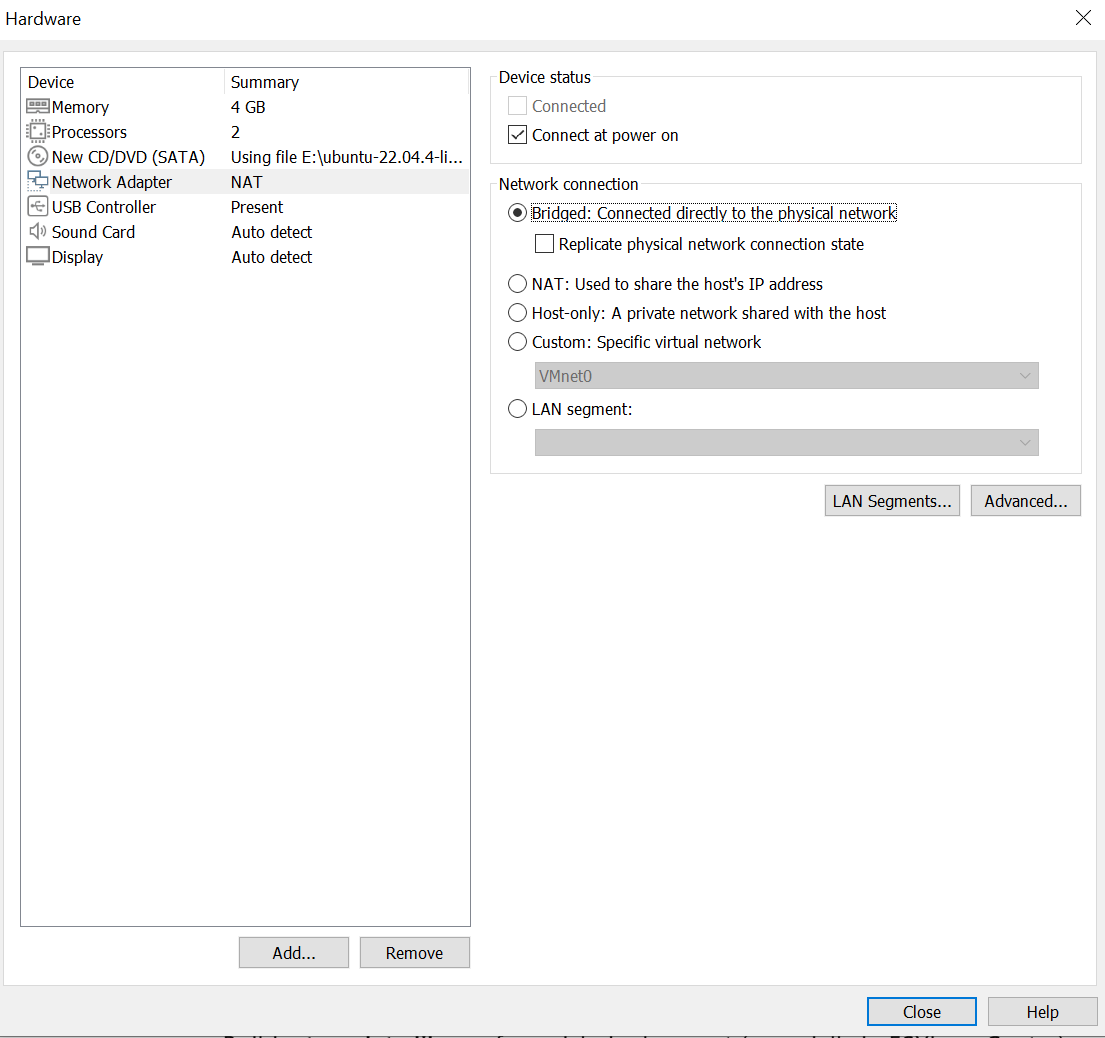

6. Click the Network Adapter

7. Change to Bridged

8. Close and the virtual machine will start.

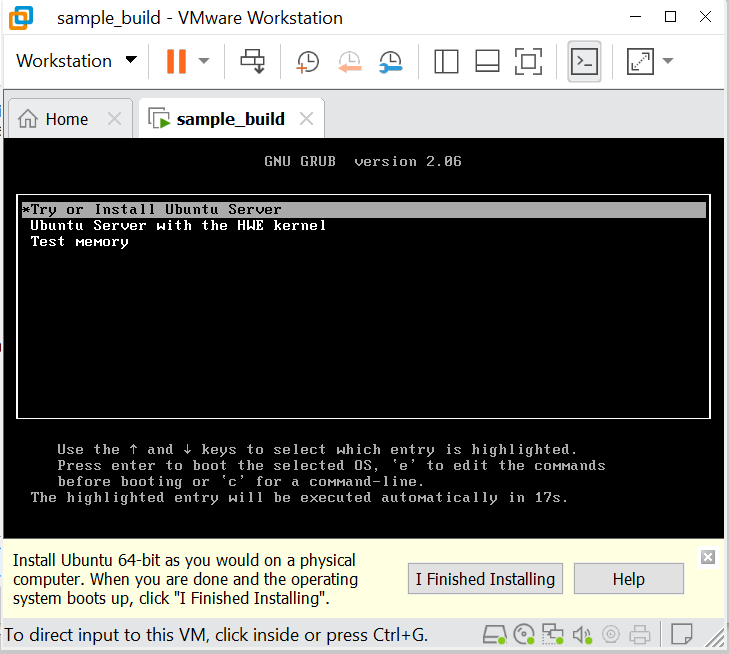

9. Accept the default options for all the screens and the OS will eventually install.

The Attacker Station (Red)

Kali – I prefer the ISO and hand install process. You can also download a pre-built VM. There is no wrong answer; especially if this is your first lab build.

• Get the VM up and write down your password in your Red Team book
• SNAPSHOT THE VM.
• Get in the habit of snapshotting any VM as soon as you get the OS installed and running.
• Taking a snapshot of a clean install makes it fast and easy to revert to known clean.

SNAPSHOT TIPS

• Power the VM off

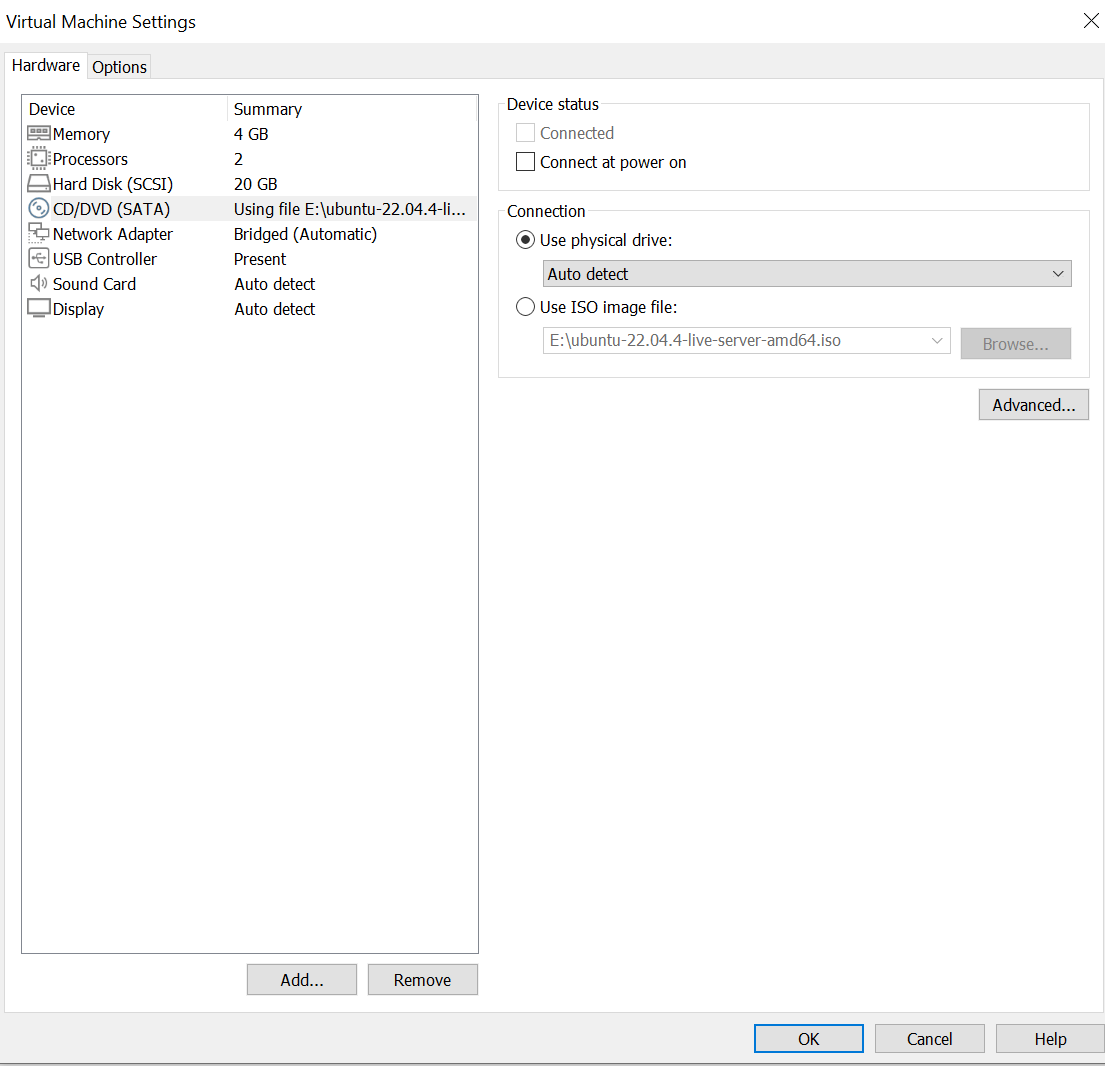

• Edit the VM to remove your ISO or any attached CD/DVD installation files
  • VM->Settings->
  • Uncheck Connect at power on
  • Check Use physical drive

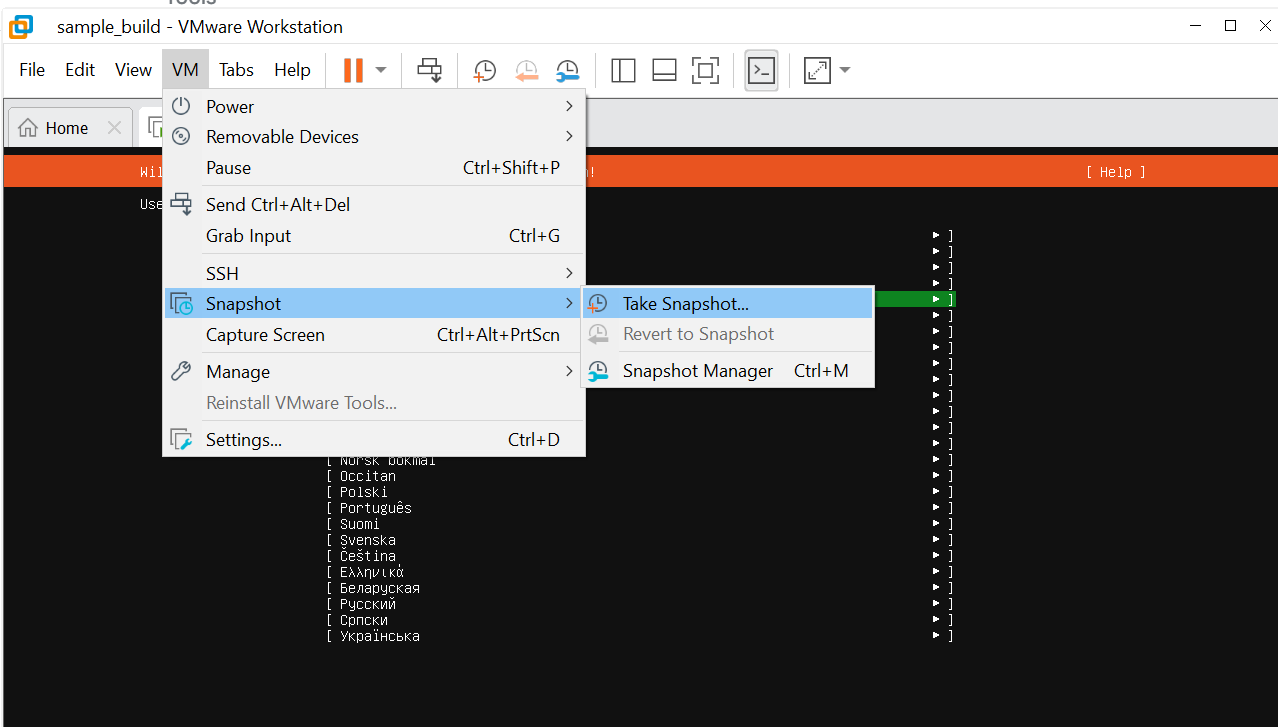

• Click on VM->Snapshot->Take Snapshot…

• Give the snapshot a meaningful name (e.g. ‘clean install’, ‘initial install’) and use the description field to clearly state the date, OS and version. I’ve even put ‘REVERT TO HERE’ just to be clear.
• Over the weeks and months of your builds you’ll be switching between more and more VM’s, various saved states, etc. Better notes today = less confusion tomorrow

Install Linux

Any flavor of Linux – it does not matter. I prefer Ubuntu. You will be asked to create a user with a username and password. I use sadmin for the username and chiapet for the password and I have for years.

• Why? This is a private lab; who cares?
• I need to be build quickly and reliably.
• You can return to this machine next month/year(s) and still login.

Objective Test

• What is the username and password of your Linux server?
• What is the username and password of your Kali box?
• What is the IP address of your Linux server? (hint – login and type: ip a)
• What is the IP address of your Kali box?
• Can you ping each box from the other?
  • syntax is: ping <ip address>
  • If your Linux server has an IP address of 192.168.100.22 you would type (from your Kali box): ping 192.168.100.22

Troubleshooting

• Read the screen. There may be an error on there.
• If there’s an error, copy and past it into your AI of choice

Next Steps

• Installing Apache
• Using host only networking
• Maybe some Wireshark
